Cartridge & Tubular

Cartridge Heaters

Lectroheat have an extensive stock available of cartridge heaters. The majority of these can be modified to suit customer requirements within a short period of time.

Application

Our Standard cartridge heaters are designed for an excellent and economical source of heat for applications such as heating platens, fluids, sealing bars, hot runner systems, hot stamping, packaging equipment, food processing etc. They can be adapted to suit most individual requirements.

Working temperature 680°C

Leads manufactured from stranded nickel wire with high temperature fibreglass insulation.

Lectroheat offer a wide range of sizes available from stock rated at 230V - all manufactured with top quality components. The outer sheath is manufactured from high quality Stainless Steel, while the heating coil is manufactured from high grade Nickel Chrome resistance wire.

Please Contact the sales office for any cartridge heater requirements.

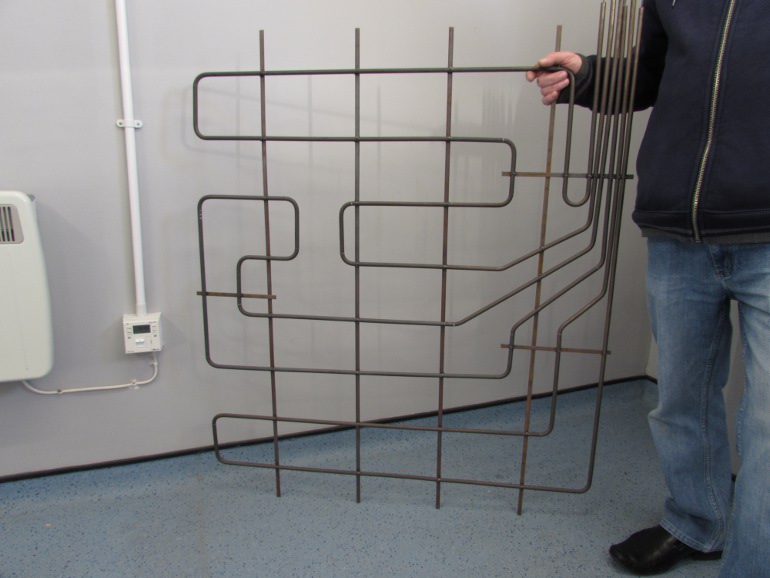

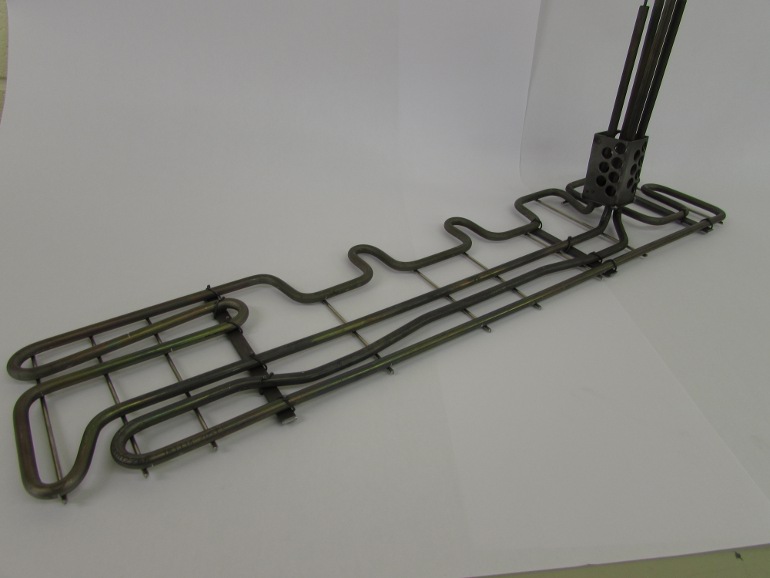

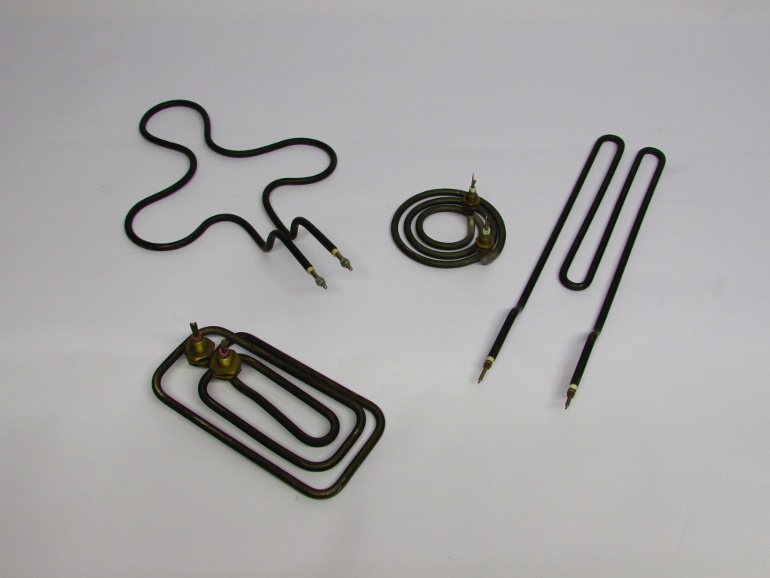

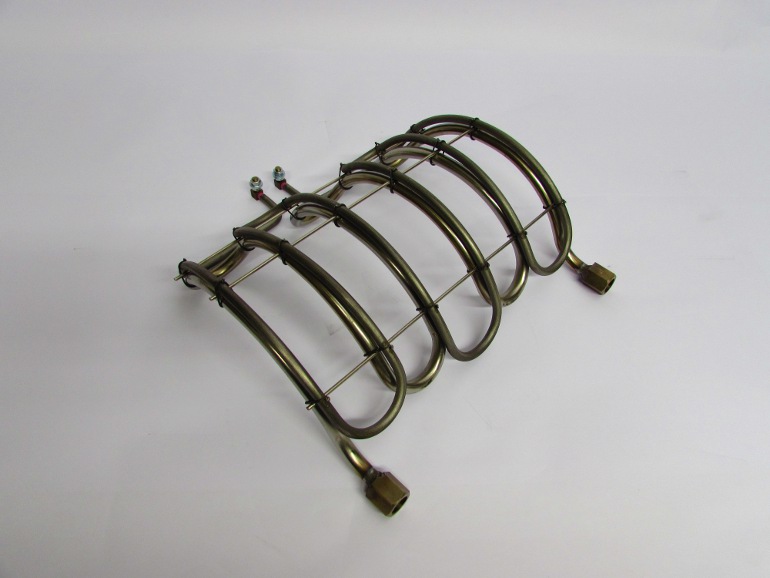

Tubular Heaters

Lectroheat offer a fast and efficient supply of top quality tubular heaters. Manufactured to individual customer specifications, they offer an efficient, fast heat source directly where required. Manufactured from many materials, that can operate at temperatures up to 870°C.

They can be formed to customer design or can be easily formed on-site to enable instant heat transfer to many surfaces such as fluid tanks and pipes or can be used as a radiant heat source.

Contact the team for more information
